Transformers w. 4xBracket Fixing 25-550VA 50/60Hz

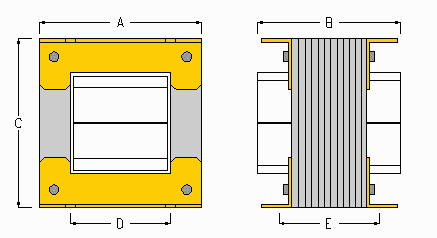

Dimensions - Transformer with 4xBracket Fixing 25-550VA

ITEM	POWER (VA)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
370	25	75	56	66	55	46
371	35	75	61	66	55	51
372	50	75	66	66	55	56
373	60	75	71	66	55	61
380	50	84	66	75	60	53
381	70	84	72	75	60	58
382	80	84	76	75	60	63
383	100	84	86	75	60	73
390	75	96	76	83	68	50
391	100	96	81	83	68	64
392	120	96	86	83	68	69
393	150	96	91	83	68	74
394	180	96	101	83	68	84
410	120	120	85	104	80	64
411	150	120	90	104	80	69
412	200	120	95	104	80	74
413	250	120	100	104	80	79
414	300	120	105	104	80	84
415	350	120	110	104	80	89
416	400	120	115	104	80	94
417	450	120	120	104	80	99
418	500	120	125	104	80	104
419	550	120	130	104	80	109

Variants available on request
