Control Panel Transformer

High quality control panel transformers with single 230V or 400V primary windings, and centre-tapped secondary windings, mounted on SFB style brackets, for vertical mounting, supplied with touch proof screw terminals.

  ENEC   KEMA EUR     Control Panel Transformer

  • Very Small size and low weight compared with traditional stacked lamination types
  • Extremely low level of radiated magnetic field
  • Very low induced noise (hum)
  • Very low iron loss
  • 100% electrical and flash tested
  • High quality manufacturing and testing in accordance to:
    EN61558, EN60742, EN60950, EN60065, VDE0551, VDE0550 and BS415
  • UL Recognised to UL506
   High quality Control Panel Transformer


Part Number Primary
Voltage		 Full Load
Vsec (V)		 Rated Current
per Sec (A)		 VA Rating Dimensions
(L x W x H)		 Mounting
Holes		 Weight
kg
 SFB0075-230-12
 SFB0075-230-24
 SFB0075-230-55		 230V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 3.125
1.563
0.682		 75VA 80x75x48mm 66x30mm 0.95
 SFB0075-400-12
 SFB0075-400-24
 SFB0075-400-55		 400V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 3.125
1.563
0.682
 SFB0160-230-12
 SFB0160-230-24
 SFB0160-230-55		 230V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 6.667
3.333
1.455		 160VA 96x78x99mm 80x39mm 1.50
 SFB0160-400-12
 SFB0160-400-24
 SFB0160-400-55		 400V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 6.667
3.333
1.455
 SFB0320-230-12
 SFB0320-230-24
 SFB0320-230-55		 230V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 13.333
6.667
2.909		 320VA 117x82x120mm 96x43mm 2.50
 SFB0320-400-12
 SFB0320-400-24
 SFB0320-400-55		 400V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 13.333
6.667
2.909
 SFB0500-230-12
 SFB0500-230-24
 SFB0500-230-55		 230V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 20.833
10.417
4.545		 500VA 135x82x138mm
(135x103x138mm)		 113x41mm 4.20
 SFB0500-400-12
 SFB0500-400-24
 SFB0500-400-55		 400V 12V - 0 - 12V
24V - 0 - 24V
55V - 0 - 55V		 20.833
10.417
4.545


Temperature Class

Winding Wire (Primary & Secondary) - Class H (180°C)
Insulation between input and output - Class B (130°C)
Connection lead insulation - Class A (105°C)

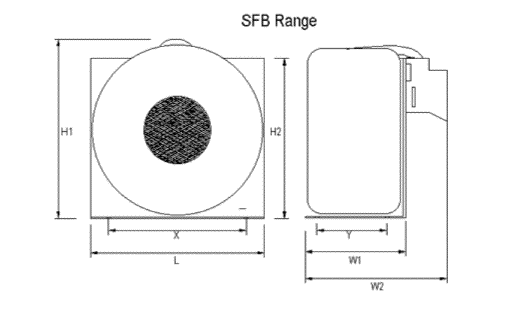

Mechanical Layout

  Bracket Footprint = "L" x "W"

Mounting Holes = "X" x "Y"

Overall size = "L" x "H" x "W"
