IC-ADSL Transformer Guide
Vi tilbyder en række kosteffektive transformere og induktorer for ADSL applikationer. Enhederne kan leveres i de mest populære små footprints i både through-hole og overflademonterings-konfigurationer. Transformerne passer til alle førende chipsets og opfylder ANSI og ETSI standard krav, samtidig med at tilbyde en meget lav THD, og tillader maksimal "loop length".
Kendetegn
|
 |
AEP Serien - Elektriske Specifikationer
Pakning og Dimensioner
IC - ADSL Transformer Katalog
| IC Producent | IC Type Nummer | Applikation | Omsætnings- forhold Linie : Chip |
Isolations- Spænding |
Induktans Linie Side |
Talema Type Nummer |
| Alcatel | MTK20130/140/150 | CO | 2 : 1 | 1500 | 410µH | AEP210 / AE-230 |
| MTK20 130/140/141 1150/152 | CPE | 1 : 1 | 1500 | 480µH | AEP220 | |
| MTK20131 | CPE | 1 : 1 | 2000 | 440µH | APT200 | |
| MTK20450 | CO/CPE | 2 : 1 | 1500 | 410µH | AEP210 / AE-230 | |
| Analog Devices | AD20MSP910/918 | CO/CPE | 1 : 1 | 1500 | 5.0mH | AEP100 / AEP140 |
| AD20MSP918 | CO | 1.27 : 1 | 1500 | 3.22mH | AEP110 | |
| AD20MSP930 | CO | 1.11 : 1 | 1500 | 2.03mH | AEP120 | |
| AD20MSP930 | CPE | 1.2 : 1 | 1500 | 2.42mH | AEP130 | |
| Centillium | CT-L21 SC08/CT-L41 SC04 | CO | 1 : 1 | 1500 | 462µH | AEP1000 |
| CT-L50SC04/CT-L50ST81 | CO/CPE | 1.8 : 1 | 1500 | 462µH | AEP1010 | |
| CT-L10AT01-1T | 1 : 1.1 | 1500 | 364µH | AEP1020 | ||
| Conexant | 328R58-001 / 328R57-001 | CO/CPE | 2 : 1 | 1500 | 800µH | AEP1100 |
| Fujitsu | MB86670 | CO | 2 : 1 | 1500 | 2.0mH | AEP800 |
| Globespan | G7000 | CPE | 1 : 1 | 1500 | 435µH | AEP500 |
| G7000 | CO | 1.4 : 1 | 1500 | 441µH | AEP510 | |
| EL-1501 | CPE | 1 : 1 | 1500 | 407µH | AEP520 / AEP530 | |
| EL-1501 | CO | 1 : 1.4 | 1500 | 483µH | AEP540 | |
| G7266 | CO | 1.41 : 1 | 1500 | 474µH | AEP550 | |
| G7266RT | 2 : 1 | 1500 | 440µH | AEP560 | ||
| ITEX | i80134 / i80234 | CPE | 1 : 1 | 1500 | 462µH | AEP700 |
| Legerity (AMD) | AMDSL 134 | CO | 2 : 1 | 1500 | 410µH | AEP900 |
| AMDSL 134 | CPE | 1 : 1 | 1500 | 410µH | AEP910 | |
| Linear Tech | LT1497 | 1 : 1.1 | 1500 | 364µH | AEP1020 | |
| Lucent | Wildwire | CO | 1 : 1 | 1500 | 490µH | AEP610 |
| Wildwire | CPE | 1 : 1 | 1500 | 1.23mH | AEP600 | |
| Motorola | MC03AX1456RT | CPE | 1 : 1.8 | 1500 | 3.96mH | AEP300 / AEP330 |
| MC03AX1456 | CO/CPE | 1.2 : 1 | 1500 | 3.96mH | AEP310 | |
| MC143460 / MC143462 | 1.2 : 1 | 1500 | 3.96mH | AEP320 | ||
| TI | TNET D4000R | 1.423 : 1 | 1500 | 1.5mH | AEP400 | |
| TNET D4000C/P | 1.95 : 1 | 1500 | 1.5mH | AEP410 | ||
| TNET D3000C/P | 1.423 : 1 | 1500 | 1.5mH | AEP400 |
Gå til top
AEP Serien Elektriske Specificationer ved 25°C
Arbejdstemperatur -40° to +85°C| Type Nummer |
Pakning | Skema | Omsætnings- forhold ±2% Linie : IC |
LP | LL(µH) Max. | CWW(pF) Max. | DCR (Ohm) Max. Linie / IC |
THD (Linearitet) Typisk | Longitudinal Balance Min. | Indskuds- dæmpning Max. |
Frekvens respons Max. |
Isolations- spænding (Vrms) |
| AEP100-S AEP100-T |
SMD TH |
1 | 1 : 1 | 5.0mH ±10% |
25 | 60 | 3.00/3.00 | -80dB 30kHz |
-46dB 10kHz-1.1MHz |
0.5dB 300kHz |
1.0dB 30kHz-1.1 MHz |
1500 |
| AEP110-S AEP110-T |
SMD TH |
1 | 1.27 : 1 | 3.22mH ±10% |
7.5 | 50 | 2.45/2.00 | -80dB 30kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP120-S AEP120-T |
SMD TH |
1 | 1.11 : 1 | 2.03mH Min |
10 | 60 | 1.30/1.50 | -80dB 30kHz |
50dB 30kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP130-S AEP130-T |
SMD TH |
1 | 1.2 : 1 | 2.42mH Min |
10 | 50 | 1.30/1.50 | -80dB 30kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP140-S AEP140-T |
SMD TH |
2 | 1 : 1 | 5.0mH ±10% |
25 | 60 | 3.00/3.00 | -80dB 30kHz |
-40dB 30kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP210-S AEP210-T |
SMD TH |
3 | 2 : 1 | 410µH ±10% |
8 | 50 | 0.90/0.50 | -72dB 20kHz |
-40dB 30kHz-1.1 MHz |
1.0dB 100kHz, 1.1 MHz |
1.5dB 30kHz-1.1 MHz |
1500 |
| AEP220-S AEP220-T |
SMD TH |
2 | 1 : 1 | 480µH ±10% |
5 | 50 | 1.25/1.35 | -72dB 10kHz |
-40dB 30kHz-1.1 MHz |
1.0dB 100kHz, 1.1 MHz |
1.5dB 30kHz-1.1 MHz |
|
| AEP230-S AEP230-T |
SMD TH |
2 | 2 : 1 | 410µH ±10% |
8 | 50 | 0.90/0.50 | -72dB 20kHz |
-40dB 30kHz-1.1 MHz |
1.0dB 100kHz, 1.1 MHz |
1.5dB 30kHz-1.1 MHz |
|
| AEP300-S AEP300-T |
SMD TH |
4 | 1 : 1.8 | 3.96mH ±5% |
25 | 50 | 4.40/8.00 | -80dB 30kHz |
-40dB 25kHz-1 MHz |
0.5dB 100KHz |
0.5dB 30kHz-1.1 MHz |
1500 |
| AEP310-S AEP310-T |
SMD TH |
4 | 1.2 : 1 | 3.96mH ±5% |
15 | 50 | 4.20/3.80 | -80dB 100kHz |
-40dB 25kHz-1 MHz |
0.5dB 100KHz |
0.5dB 30kHz-1.1 MHz |
|
| AEP320-S AEP320-T |
SMD TH |
5 | 1.2 : 1 | 3.96mH ±5% |
15 | 50 | 2.90/2.50 | -80dB 100kHz |
-40dB 25kHz-1 MHz |
0.5dB 100KHz |
0.5dB 30kHz-1.1 MHz |
|
| AEP330-S AEP330-T |
SMD TH |
5 | 1 : 1.8 | 3.96mH ±5% |
25 | 60 | 4.40/8.00 | -80dB 30kHz |
-40dB 25kHz-1 MHz |
0.5dB 100KHz |
0.5dB 30kHz-1.1 MHz |
|
| AEP400-S AEP400-T |
SMD TH |
8 | 1.423 : 1 | 1.5mH ±6% |
18 | 40 | 1.75/0.80 | -80dB 100kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 300kHz |
0.5dB 30kHz-1.1 MHz |
1500 |
| AEP410-S AEP410-T |
SMD TH |
8 | 1.95 : 1 | 1.5mH ±6% |
12 | 45 | 1.55/0.90 | -80dB 100kHZ |
-50dB 30kHz-1.1 MHz |
0.5dB 300kHz |
0.5dB 30kHz-1.1 MHz |
|
| AEP500-S | SMD | 3 | 2 : 1 | 435µH ±6% |
10 | 40 | 1.30/1.50 | -80dB 100kHz |
-40dB 25kHz-1.1 MHz |
0.5dB 722kHz |
0.5dB 30kHz-1.1 MHz |
1500 |
| AEP510-T AEP510-S |
TH SMD |
3 | 1.4 : 1 | 441µH ±6% |
6 | 40 | 1.05/0.85 | -70dB 200kHz |
-60dB 20kHz-1.1 MHz |
0.5dB 722kHz |
1.0dB 150kHz-1.5MHz |
|
| AEP520-T AEP520-S |
TH SMD |
2 | 1 : 1 | 407µH ±6% |
10 | 40 | 1 .40/1 .20 | -85dB 100kHz |
-50 dB 30kHz-1.1 MHz |
0.5dB 722kHz |
3.0dB 30kHz-2.0MHz |
|
| AEP530-T AEP530-S |
TH SMD |
7 3 |
1 : 1 | 407µH ±6% |
10 | 40 | 1 .40/1 .20 | -85dB 100kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 722kHz |
3.0dB 30kHz-2.0MHz |
|
| AEP540-T AEP540-S |
TH SMD |
2 | 1 : 1.4 | 483µH ±10% |
10 | 50 | 1 .30/2.45 | -85dB 100kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 722kHz |
3.0dB 30kHz-2.0MHz |
|
| AEP550-T AEP550-S |
TH SMD |
6 | 1.41 : 1 | 474µH ±10% |
12 | 40 | 1.10/0.85 | -80dB 100kHz |
-50dB 30kHz-1.1 MHz |
1.0dB 722kHz |
0.5dB 100kHz-1.1MHz |
|
| AEP560-S | SMD | 6 | 2 : 1 | 440µH ±5% |
6 | 40 | 1.90/0.95 | -80dB 100kHz |
-50dB 30kHz-1.1 MHz |
1.0dB 722kHz |
0.5dB 100kHz-1.1MHz |
|
| AEP600-T | TH | 3 | 1 : 1 | 1.23mH ±6% |
10 | 40 | 1 .40/1 .60 | -80dB 100kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 300kHz |
0.5dB 30kHz-1.1 MHz |
1500 |
| AEP610-T | TH | 3 | 1 : 1 | 490µH ±6% |
10 | 40 | 1.35/1.50 | -80dB 100kHz |
-50dB 30kHz-1.1 MHz |
0.5dB 300kHz |
0.5dB 30kHz-1.1 MHz |
|
| AEP700-T AEP700-S |
TH SMD |
2 3 |
1 : 1 | 462µH ±6% |
10 | 50 | 1.35/1.55 | -80dB 30kHz |
-40dB 20kHz-1.1 MHz |
0.5dB 772kHz |
1.25dB 30kHz-1.1 MHz |
1500 |
| AEP800-T AEP800-S |
TH SMD |
9 | 2 : 1 | 2.0mH ±6% |
12 | 60 | 2.50/1.30 | -80dB 100kHz |
-40dB 30kHz-1.1 MHz |
0.5dB 100kHz |
0.5dB 30kHz-1.1 MHz |
1500 |
| AEP900-T AEP900-S |
TH SMD |
3 3 |
2 : 1 | 410µH ±10% |
8 | 60 | 0.90/0.50 | -80dB 100kHz |
-40dB 25kHz-1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
1500 |
| AEP910-T AEP910-S |
TH SMD |
2 | 1 : 1 | 410µH ±10% |
8 | 60 | 0.90/1.00 | -80dB 100kHz |
-40dB 25kHz-1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP1000-T AEP1000-S |
TH SMD |
2 | 1 : 1 | 462µH ±10% |
5 | 60 | 1.30/1.30 | -67dB 10kHz |
-50dB 10kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
1500 |
| AEP1010-T AEP1010-S |
TH SMD |
2 | 1.8 : 1 | 462µH ±10% |
10 | 70 | 1.39/0.90 | -67dB 10kHz |
-50dB 10kHz-1.1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
|
| AEP1020-S | SMD | 10 | 1 : 1.1 | 364µH ±5% |
11 | 60 | 2.10/2.20 | -67dB 10kHz |
-45d B 20kHz-1.1 MHz |
1.5dB 500kHz |
1.0dB 40kHz-1.1 MHz |
|
| AEP1100-T AEP1100-S |
TH SMD |
6 5 |
2 : 1 | 800µH ±10% |
10 | 50 | 1.48/0.77 | -80dB 100kHz |
-40dB 25kHz-1 MHz |
0.5dB 100kHz |
1.0dB 30kHz-1.1 MHz |
1500 |
Gå til top

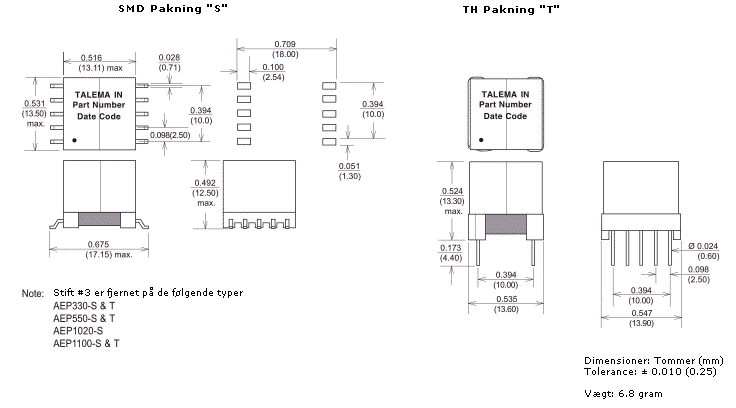

Pakning og Dimensioner - EP13 Type ADSL Transformere

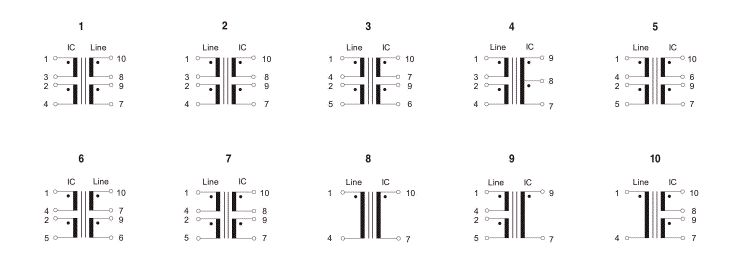

Skema
