AEP700 -ITEX Chipsets

Features

complies with ANSI and ETSI requirements
matched to ITEX´s i80134 & i80234 chipsets
very low THD
1,500V minimum isolation
all materials approved to UL94V-0
excellent quality at competitive price due to high volume production
manufactured in ISO-9001 approved facility

AEP700 - ITEX Chipsets

Electrical Specifications @ 25°C

Operating Temperature: -40° to +85°C

Part
Number

Package

IC Driver

Turns
Ratio
±2%
Line : IC

L_P
(µH)
±6%

L_L
(µH)
Max.

C_WW
(pF)
Max.

DCR
(Ohms)
Max.
Line / IC

THD
(Linearity)
Typical

Longitudinal
Balance
Min.

Insertion
Loss
Max.

Frequency
Response
Max.

Isolation
Voltage
(Vrms)

AEP700-T

TH

i80134 CPE

1 : 1

462

10

50

1,35 / 1,55

-80dB
30kHz

-40dB
20kHz-1,1MHz

0,5dB
772kHz

1,25dB
30kHz-1,1MHz

1.500

AEP700-S

SMD

i80234 CPE

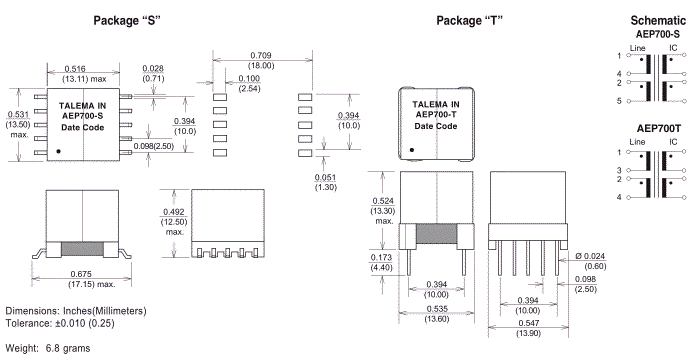

Dimensions & Schematic - Pins
