TV -Common Mode EMI Toroidal Inductor

TV Series low cost toroidal inductors, designed to attenuate conductor noise (EMI) in systems.   Toroidal Inductors


Features

  • SMD design ideal for pick and place compatibility
  • Suitable for solder re-flow
  • Low cost through hole version available upon request
  • Manufactured in ISO-9001 approved facility
  • Operating temperature range: -30°C to +130°C


Mechanical Layout

Electrical Specifications at 25°C

Part Number Rated RMS Current (Amps) LN (mH ±30%) DCR (mOhm max) SRF (MHz) Vrms Package Size
"S" "T"
 TV_-3.6-102 3.60 1.0 50 4 1,500 3 3
 TV_-1.5-102 1.50 1.0 60 2 1,500 2 2
 TV_-2.5-302 2.50 3.0 80 2.2 1,500 3 3
 TV_-1.0-103 1.00 10.0 450 0.5 1,500 2 2
 TV_-0.5-223 0.50 22.0 850 0.3 1,500 2 2

Note: When ordering, add "S" and "T" to the basic part number to denote preferred mounting style. Example: TVS-1.0-223 for SMD or TVT-1.0-223 for through hole

Mechanical Layout

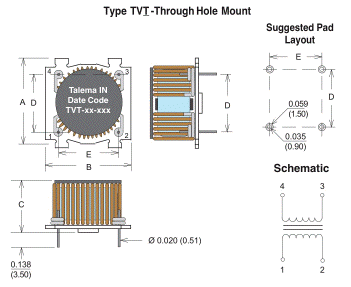

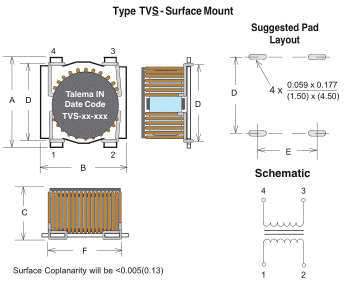

Mechanical Layout - Type TVT Through Hole Mount   Mechanical Layout - Type TVS Surface Mount


Mounting Style Size Code Dimensions -Inches ±0.010 (mm ±0.25)
A B C D E F
"S"
SMD		 2 0.630
(16.00)		 0.559
(14.20)		 0.350 max.
(8.90 max.)		 0.520
(13.20)		 0.350
(8.90)		 0.484
(12.30)
3 0.756
(19.20)		 0.669
(17.00)		 0.390 max.
(9.90 max.)		 0.657
(16.70)		 0.445
(11.30)		 0.579
(14.70)
"T"
TH		 2 0.630
(16.00)		 0.559
(14.20)		 0.358 max.
(9.10 max.)		 0.500
(12.70)		 0.400
(10.16)		 -
3 0.756
(19.20)		 0.669
(17.00)		 0.398 max.
(10.10 max.)		 0.500
(12.70)		 0.500
(12.70)		 -
