Pot cores 14x8-30x19 SMP Chokes and Transformers

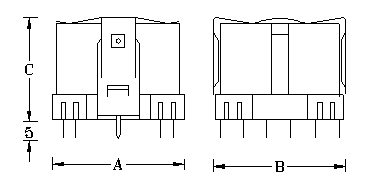

SMP CHOKES AND TRANSFORMERS WITH "POT-CORES"








ITEM

CORE

A (mm)

B (mm)

C (mm)

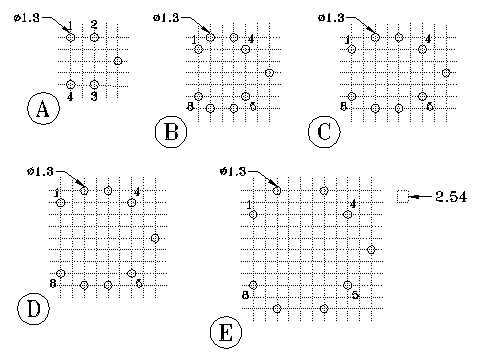

PRINT LAYOUT

710

14x8

15.0

17.0

11.0

A

711

18x11

21.0

20.0

13.5

B

712

18x14

21.0

20.0

17.0

B

713

22x13

26.0

25.0

17.0

C

714

26x16

28.5

28.0

19.0

D

715

30x19

32.5

32.5

23.0

E

Variants available on request
